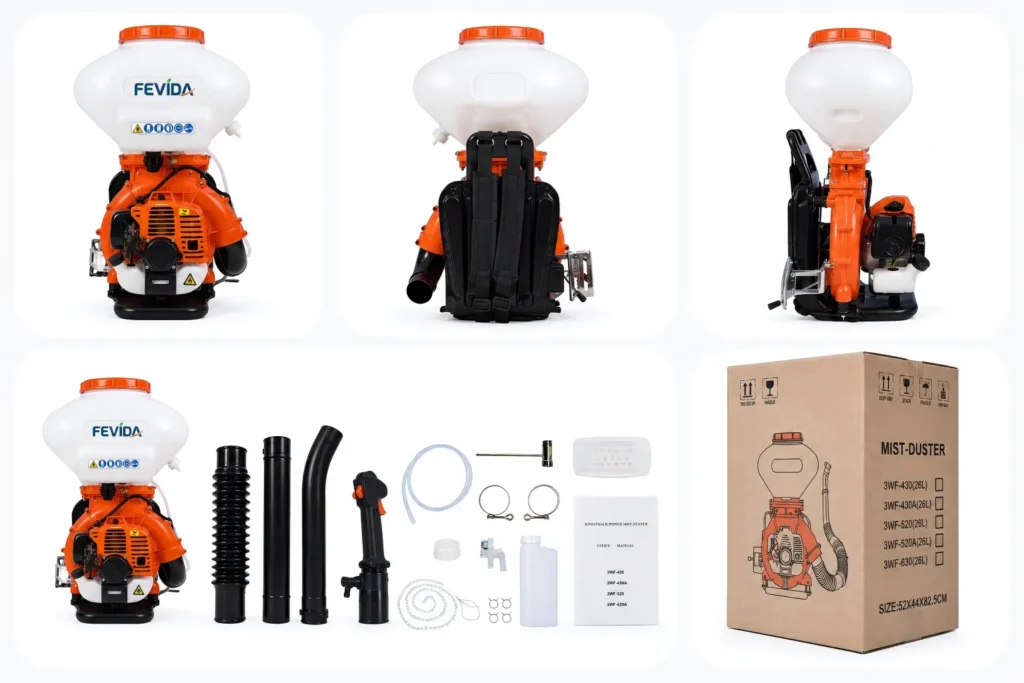

3WF-430 Backpack Mist Duster
Gasoline-powered 2-stroke backpack mist duster for orchard spraying, farm pest control, crop protection, tree powdering, urban disinfection and foliar fertilization applications.
Key Specifications:
• Engine: 1E40F-7A
• Power: 1.25kw / 6500rpm
• Tank Capacity: 14L / 16L / 20L / 26L / 30L
• Spray Range: ≥12m
• Powder Range: ≥17m
• N.W. / G.W.: 10.5kg / 13.5kg
Technical Specifications
| Item | Specification |
| Model | 3WF-430 |
| Engine | 11E40F-7A |
| Power | 1.25kw / 6500rpm |
| Tank Capacity | 14L / 16L / 20L / 26L / 30L |
| Durability Time | ≥150h |
| Displacement | 42.7cc |
| Spray Range | ≥12m |
| Powder Spraying Range | ≥17m |
| Oil Mixture | 1.0L |
| Run Time | 1.1h |
| N.W. / G.W. | 10.5kg / 13.5kg |
| Size | 520 × 440 × 735 / 760 / 770 / 825 / 865mm |
| 20ft Container | 168 / 173 / 176 / 188 / 191 pcs |
| 40ft Container | 404 / 391 / 384 / 360 / 355 pcs |
Product Features
- Stable 1E40F series gasoline engine performance
- Large-capacity multi-specification tank options
- Portable throttle control lever for quick adjustment
- Larger fuel tank capacity supports longer working time
- Comfortable backpack carrying structure for field operation
